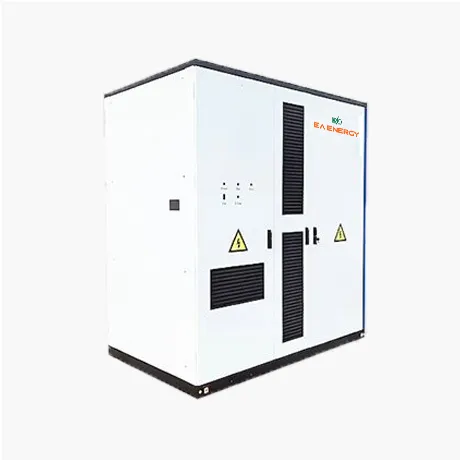

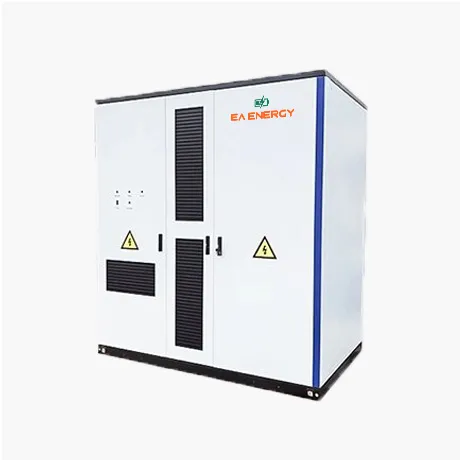

EA ENERGY ESS-50-110 Residential & Small Commercial Energy Storage System
The ESS-50-110 is a compact, high-efficiency energy storage solution tailored for residential and small commercial applications. With a 110kWh capacity and 50kW rated power, it optimizes self-consumption of solar energy, reduces electricity costs via peak-shaving, and provides reliable backup power during outages. The system integrates 51.2V 280Ah LFP batteries (cycle life ≥8,000 cycles) and operates in temperatures from -20°C to 55°C, ensuring durability in diverse climates.
| No. | Name | Parameter |
| System main parameters | ||
| 1 | Model | EA ESS-110-50 |
| 2 | Normal Capacity（kWh） | 110 |
| 3 | Rated Power (kW) | 50 |
| 4 | Local Monitoring | Yes |
| 5 | Humidity | 0-95%, Non-condensing |
| 6 | Isolation transformer | Optional |
| 7 | Working Temperature Range (℃) | -20~60 |
| 8 | Fire Protection | Aerosol/perfluorohexadone |
| 9 | Cooling system | Air Conditioner |
| 10 | Communication Protocol | RS485、4G、CAN |
| 11 | Protection Class | IP54 |
| 12 | Altitude（m） | 3000 |
| DC Parameters | ||
| 1 | Voltage Range（Vdc） | 650~900 |
| AC Parameters | ||
| 1 | Max. Operation Current（A） | 150 |
| 2 | Rated Power（kW） | 50 |
| 3 | Rated Discharge Voltage（Vac） | 400 |
| 4 | Wiring | Three Phase+N+PE |
| 5 | Max. Discharge Current（A） | 145 |
| 6 | Rated Power（Hz） | 50 |
| Battery Moudel Data | ||
| 1 | Model | 51.2V 280Ah |
| 2 | Weight（kg） | 106 |
IP55-rated enclosure, integrated fire suppression, and multi-layer thermal management for safe indoor/outdoor installation.
Supports Wi-Fi/4G monitoring and compatibility with solar inverters, enabling smart grid interaction and remote management.
Modular architecture allows easy scalability, while single-phase/three-phase AC output (230V/400Vac) adapts to household or small business needs.
Whisper-quiet operation and space-saving footprint make it ideal for homes, retail stores, and remote off-grid sites.
