Here is a professional product introduction for the 205kWh Industrial Energy Storage System based on the provided parameters and industry standards:

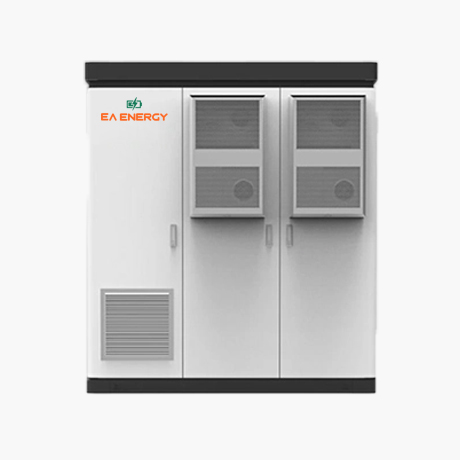

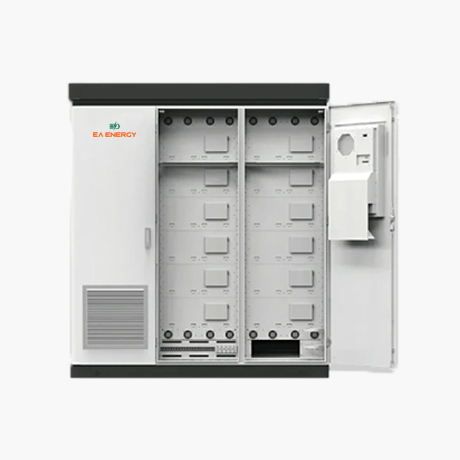

The ESS-100-205 Industrial Energy Storage System is a high-performance solution designed for commercial and industrial energy management. With a 205kWh capacity and 100kW rated power, it supports efficient peak shaving, demand response, and backup power applications. The system integrates 51.2V 280Ah LFP batteries (cycle life ≥8,000 cycles) and operates across an extensive temperature range of -20°C to 60°C, ensuring reliability in harsh environments.
Key features include:
1. Multi-level Safety: Equipped with aerosol/perfluorohexanone fire suppression and IP54-rated enclosure, combined with air-conditioned thermal management to maintain optimal battery temperature and prevent thermal runaway.
2. Smart Connectivity: Supports RS485, 4G, and CAN communication protocols for real-time monitoring and integration with renewable energy sources or microgrids.
3. Flexible Configuration: Optional isolation transformer and three-phase AC output (400Vac, 50Hz) enable seamless grid interaction, while modular design allows capacity expansion.
4. Robust Performance: Withstands altitudes up to 3,000m and humidity ≤95%, making it suitable for diverse industrial scenarios like manufacturing plants, data centers, and EV charging stations.
Ideal for optimizing energy costs through peak-valley arbitrage and ensuring uninterrupted operations during grid outages.
| System main parameters | ||
| 1 | Model | EA ESS-215-100 |
| 2 | Normal Capacity（kWh） | 215 |
| 3 | Rated Power (kW) | 100 |
| 4 | Local Monitoring | Yes |
| 5 | Humidity | 0-95%, Non-condensing |
| 6 | Isolation transformer | Optional |
| 7 | Working Temperature Range (℃) | -20~60 |
| 8 | Fire Protection | Aerosol/perfluorohexadone |
| 9 | Cooling system | Air Conditioner |
| 10 | Communication Protocol | RS485、4G、CAN |
| 11 | Protection Class | IP54 |
| 12 | Altitude（m） | 3000 |
| DC Parameters | ||
| 1 | Voltage Range（Vdc） | 650~900 |
| AC Parameters | ||
| 1 | Max. Operation Current（A） | 150 |
| 2 | Rated Power（kW） | 100 |
| 3 | Rated Discharge Voltage（Vac） | 400 |
| 4 | Wiring | Three Phase+N+PE |
| 5 | Max. Discharge Current（A） | 145 |
| 6 | Rated Power（Hz） | 50 |
| Battery Moudel Data | ||
| 1 | Model | 51.2V 280Ah |
| 2 | Weight（kg） | 106 |
With 6,000+ cycles at 80% capacity retention (LFP batteries) and multi-level safety features like fire suppression (aerosol/perfluorohexanone) and thermal runaway prevention, it ensures long-term reliability.
Integrated EMS and AI-driven algorithms optimize peak shaving, achieving daily two-charge/discharge cycles for grid cost savings. Real-time monitoring via cloud platforms enables remote control and predictive maintenance.
Scalable design supports parallel configurations for expanded capacity (e.g., 10–20ft container setups), adapting to diverse scenarios like factories, data centers, and renewable microgrids.
Peak-valley arbitrage
Solar/wind integration for stable renewable output.
Emergency backup power for critical facilities.
This system balances efficiency, adaptability, and ROI for industrial energy resilience.
