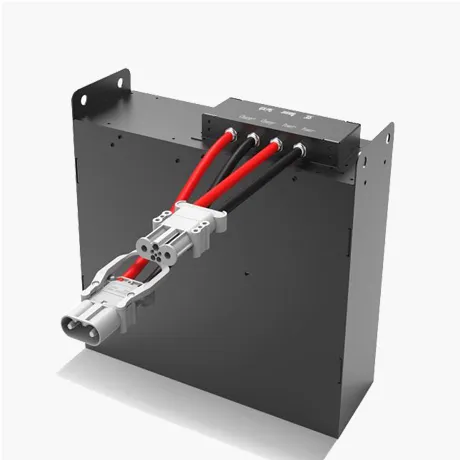

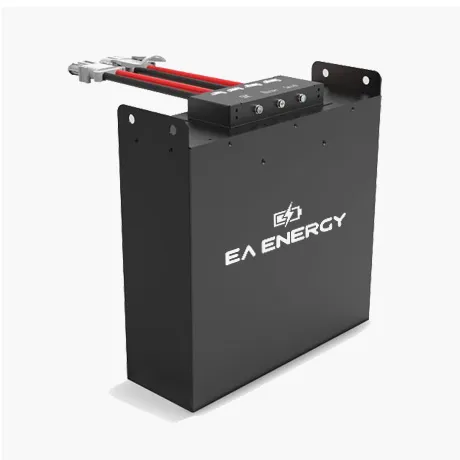

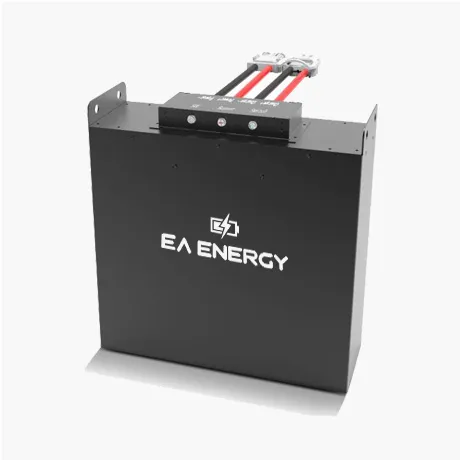

Revolutionize your electric pallet trucks with the EA 24V 230Ah Lithium Lifepo4 Battery—a game-changing energy solution designed to elevate your material handling operations. Boasting an impressive 130% increase in energy storage compared to standard 100Ah models, this high-capacity lithium powerhouse significantly extends operational runtime, supercharges efficiency, and provides exceptional torque, effortlessly tackling the most demanding tasks in your warehouse or logistics environment.
Engineered for peak performance in high-volume operations, this battery offers seamless compatibility with 24V electric forklifts and pallet stackers from renowned brands such as Toyota, Hyster, Yale, Linde, and Mitsubishi. Its advanced built-in Battery Management System (BMS) acts as a vigilant guardian, ensuring optimal performance at all times. The BMS safeguards against common battery issues like overcharging, deep discharging, and overheating, thereby enhancing the battery’s lifespan and reliability. Whether you’re managing continuous shifts or handling heavy loads, the EA 24V 230Ah Lithium Lifepo4 Battery is your trusted partner for efficient and uninterrupted material handling.
| Model | EA24230F | Continuous Charge | 50A~100A |
| Nominal Voltage / Discharge Voltage Range | 24V (25.6V) | Maximum Continuous Charge | 100 A |
| Nominal Capacity | 230Ah | Continuous Discharge Current | 300A |
| Stored Energy | 5888Wh | Maximum Continuous Discharge Current | Peak 460A 30s |
| Weight | 100KG / 220.46 lbs (without counterweight) | Cycle Life | ≥3500 Cycles |
| Dimension(L×W×H) | 624 x 284 x 627 mm 24.57 x 11.18 x 24.69 inch | Casing Material | Steel |
| Charge Temperature Range | 32°F~131°F (0°C ~ 55°C) | Application | Toyota, Hyster, Yale, Linde, Mitsubishi, and other electric forklifts, stackers |
| Discharge Temperature Range | -4°F~131°F ( -20°C ~ 55°C) | Safety Features | GPS, BMS, Over Charge/Discharge, Low/High Temp Cut-off, Over Current, Short Circuit |
With a 230Ah rating, it offers significantly more energy storage than standard models, enabling extended operational runtime for uninterrupted material handling even during long shifts.
The high-capacity Lithium Lifepo4 battery boosts the overall efficiency of electric pallet trucks, reducing downtime caused by frequent recharging and maximizing productivity.
Delivers robust torque, allowing the pallet truck to effortlessly handle heavy loads and navigate challenging terrains within warehouses or logistics centers.
Universally compatible with 24V (25.6V) electric forklifts and pallet stackers from leading brands like Toyota, Hyster, Yale, Linde, and Mitsubishi, providing versatility for various equipment setups.
Equipped with an advanced Battery Management System (BMS) that protects against overcharging, deep discharging, and overheating, ensuring optimal performance and extending the battery's lifespan.
Lithium Lifepo4 technology offers a more environmentally friendly option with longer cycle life and better reliability compared to traditional lead-acid batteries, reducing long-term operational costs.
