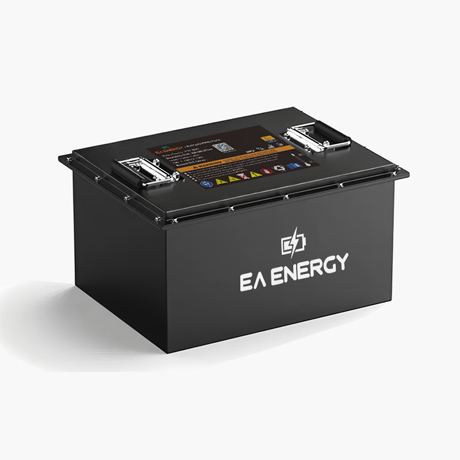

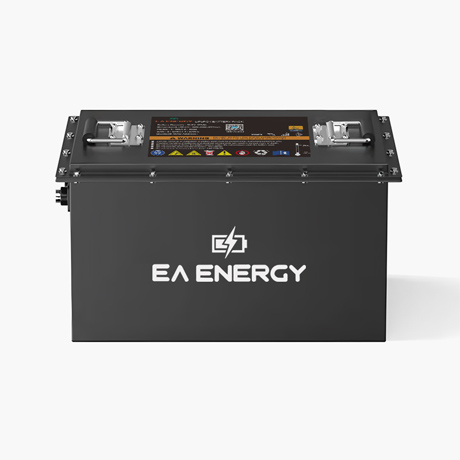

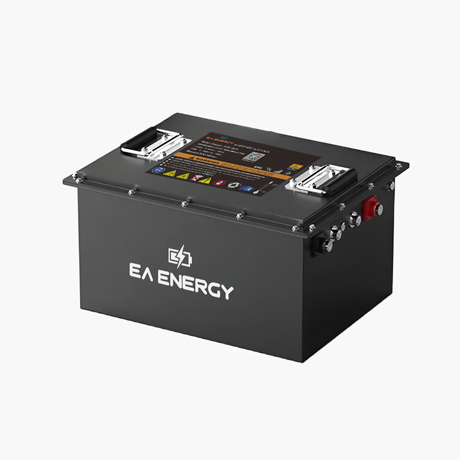

The EA ENERGY 24V 230Ah RV Lithium Battery is a high-performance energy solution designed to power modern recreational vehicles (RVs) with unmatched efficiency and reliability. Built with LiFePO4 chemistry, it delivers a robust 230Ah capacity (5.88kWh energy storage) to support demanding RV systems, including air conditioning, lighting, refrigeration, and onboard electronics, for extended off-grid adventures.
Key Features:
Extended Power Supply: Provides up to 20+ hours of continuous operation for RV appliances, eliminating reliance on generators or grid power.
Rapid Charging: Supports 150A max continuous charge current, achieving 80% charge in 2–3 hours via solar, shore power, or alternator inputs.
Durability & Safety: Features an IP54-rated rugged casing to withstand dust, moisture, and vibrations, paired with a smart BMS for real-time monitoring of voltage, temperature, and current. Includes protections against overcharge, over-discharge, and short circuits.
Long Lifespan: Engineered for 3,500+ cycles at 70% depth of discharge (DoD), offering a 10-year service life—far surpassing traditional lead-acid batteries.
Lightweight Design: At 63 kg, it reduces RV weight by 50% compared to lead-acid alternatives, enhancing fuel efficiency and payload capacity.
Applications:
Ideal for powering RV air conditioners, solar storage systems, inverters, and off-grid setups, this battery ensures stable voltage delivery even in extreme temperatures (-20°C to 60°C). Its modular design allows seamless integration with existing RV electrical systems and scalability for expanded energy needs.
Sustainability:
With zero emissions and 95% recyclability, it aligns with eco-conscious travel trends while reducing long-term ownership costs.
| Model | EA25230S | Continuous Charge | 15A~50A |
| Nominal Voltage / Discharge Voltage Range | 24V (25.6V) | Maximum Continuous Charge | 100 A |
| Nominal Capacity | 230Ah | Continuous Discharge Current | 200A |
| Stored Energy | 5888Wh | Maximum Continuous Discharge Current | Peak 300A 30s |
| Weight | 50KG / 110.23 lbs (without counterweight) | Cycle Life | ≥4500 Cycles |
| Dimension(L×W×H) | 495 x 297 x 198 mm 19.48 x 11.7 x 7.8 inch | Casing Material | Steel |
| Charge Temperature Range | 32°F~131°F (0°C ~ 55°C) | Application | RV 24V system |
| Discharge Temperature Range | -4°F~131°F ( -20°C ~ 55°C) | Safety Features | GPS, BMS, Over Charge/Discharge, Low/High Temp Cut-off, Over Current, Short Circuit |
Lithium batteries, particularly LiFePO4 variants, deliver 2,000–7,000 charge cycles with minimal capacity degradation, outperforming lead-acid batteries (300–1,000 cycles) by 6–10 times. They safely discharge up to 80% depth of discharge (DoD) without lifespan compromise, compared to the 50% limit of traditional batteries. This makes them ideal for renewable energy storage and RVs, where long-term reliability is critical.
With 3–5x higher energy density than lead-acid alternatives, lithium batteries provide more power in a compact, lightweight package. For example, a 24V 230Ah LiFePO4 battery weighs 58% less than lead-acid equivalents, enhancing fuel efficiency in RVs and simplifying installation in marine applications. Their compact size also maximizes space efficiency in solar systems and electric vehicles.
Lithium batteries support fast charging (e.g., 80% charge in 2 hours) and maintain stable voltage output during discharge, ensuring uninterrupted power for high-demand devices. Advanced thermal management and smart BMS prevent overheating while achieving 90%+ energy conversion efficiency, reducing waste and operational costs. This combination of speed and reliability is vital for industrial equipment and off-grid systems.
