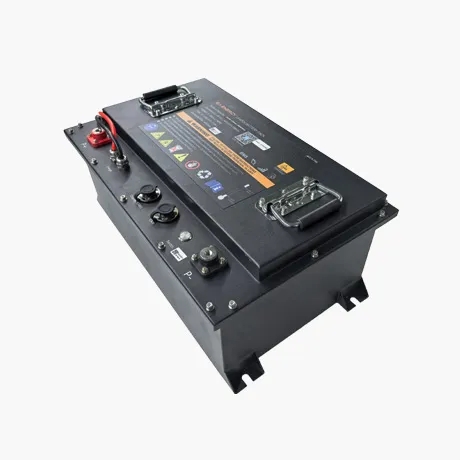

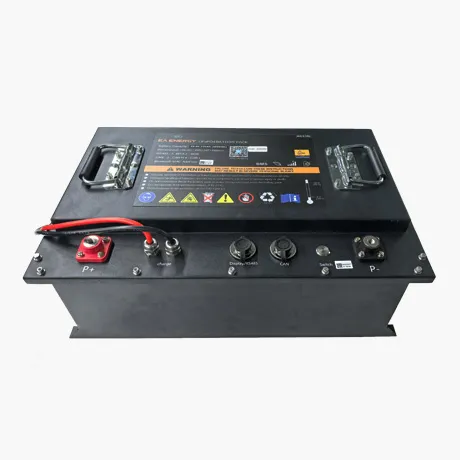

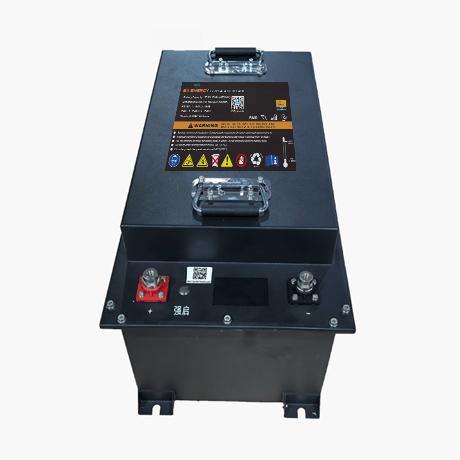

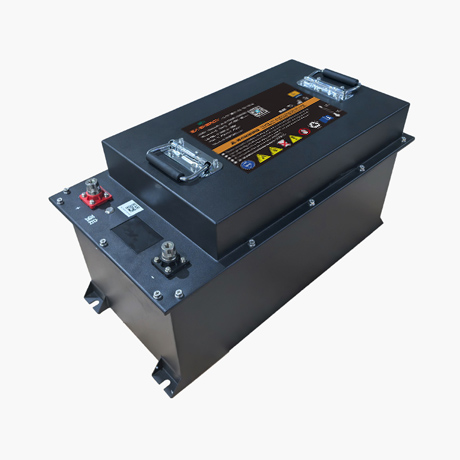

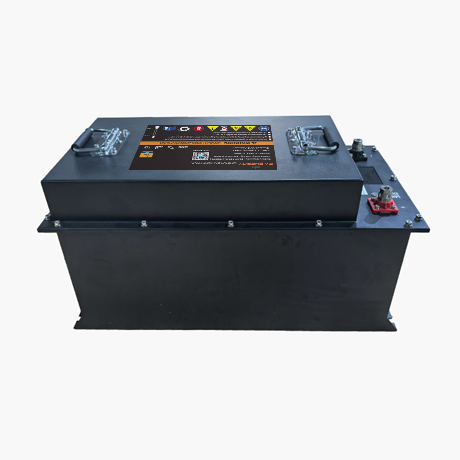

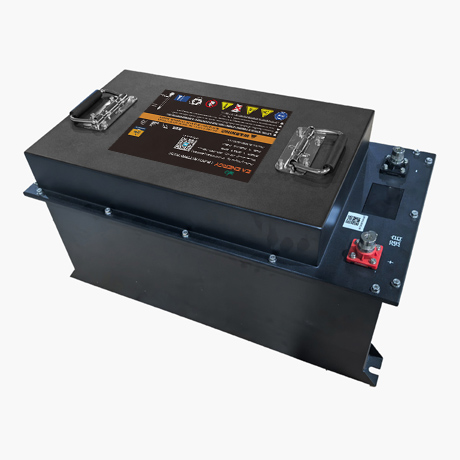

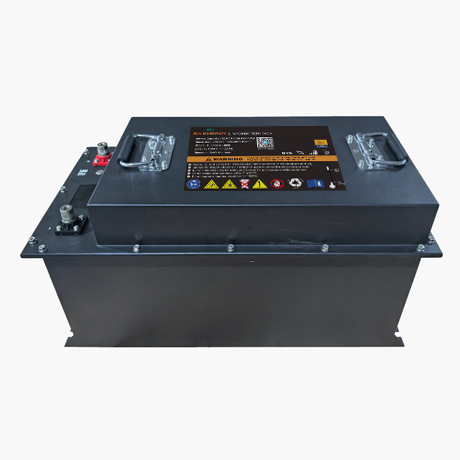

The EA ENERGY 24V 230Ah Truck Starting Battery redefines reliability for heavy-duty vehicles, combining high-performance lithium technology with innovative engineering. Built on LiFePO4 chemistry, it delivers 2500A instantaneous cranking power to effortlessly start engines even in extreme temperatures (-30°C to 55°C), outperforming traditional lead-acid batteries in both cold cranking amps (CCA) and durability. Its 230Ah capacity ensures up to 20 hours of continuous air conditioning during parking, eliminating the need for idling and reducing fuel costs.
The battery integrates a smart BMS that optimizes cell balancing, thermal management, and overcharge protection, extending cycle life to 6+ years with minimal capacity decay. Its modular design allows seamless scalability for varying energy demands, while maintenance-free operation reduces downtime and operational hassles. Enhanced with IP67-rated rugged construction , it withstands vibrations, dust, and moisture, ideal for long-haul logistics and off-road applications.
| Model | EA25230S | Continuous Charge | 15A~50A |
| Nominal Voltage / Discharge Voltage Range | 24V (25.6V) | Maximum Continuous Charge | 100 A |
| Nominal Capacity | 230Ah | Continuous Discharge Current | 200A |
| Stored Energy | 5888Wh | Maximum Continuous Discharge Current | Peak 300A 30s |
| Weight | 50KG / 110.23 lbs (without counterweight) | Cycle Life | ≥4500 Cycles |
| Dimension(L×W×H) | 495 x 297 x 198 mm 19.48 x 11.7 x 7.8 inch | Casing Material | Steel |
| Charge Temperature Range | 32°F~131°F (0°C ~ 55°C) | Application | Genie、JLG、Skyjack、Haulotte |
| Discharge Temperature Range | -4°F~131°F ( -20°C ~ 55°C) | Safety Features | GPS, BMS, Over Charge/Discharge, Low/High Temp Cut-off, Over Current, Short Circuit |
Instantaneous 2,800A Cranking Power: Engineered with TOLL-packaged MOSFETs (5x higher current tolerance than standard components) and reinforced copper busbars, it guarantees reliable ignition in sub-zero environments or low-battery scenarios.
Sustained 500A Output: Maintains stable power delivery for critical systems (e.g., refrigeration units) during prolonged operation, supported by honeycomb heat-dissipation structures that reduce thermal stress by 40%.
AI-Driven BMS: Real-time cell balancing (±10mV voltage precision) and multi-layer protection (overcharge/discharge, short-circuit) extend cycle life to 6,000+ cycles at 80% capacity retention.
Thermal Resilience: Operates seamlessly from -30°C to 55°C with active temperature monitoring, preventing thermal runaway risks.
Dual functionality: Supports both engine ignition and auxiliary power for onboard electronics (e.g., GPS, refrigeration).
Rapid charging: Recovers 80% charge in 2 hours, maximizing uptime.
Eco-friendly: Zero emissions and recyclable materials align with sustainable logistics trends.
