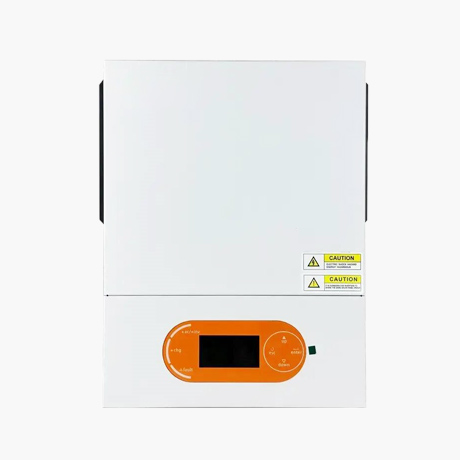

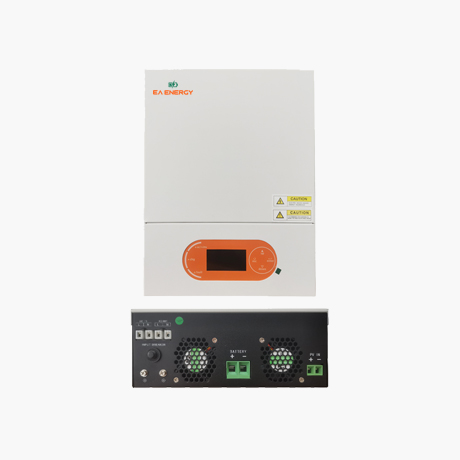

EA POWER 24V Solar Inverter for Home & Battery Storage
The EA POWER 24V Solar Inverter is a versatile, high-efficiency solution designed to convert solar-generated DC power into stable AC electricity for residential use or battery storage systems. Compatible with 24V solar panels and battery banks, it integrates MPPT technology to maximize solar energy harvesting, achieving ≥97% conversion efficiency even under partial shading or fluctuating sunlight.
Key Features:
Dual Output Modes: Seamlessly switches between powering household appliances (e.g., refrigerators, air conditioners) and charging lithium/lead-acid batteries. Supports 3,000W continuous AC output (6,000W surge) for high-demand devices.
Smart Energy Management: Built-in WiFi/Bluetooth connectivity enables real-time monitoring via mobile apps, allowing users to track energy production, consumption, and battery status. Configurable charging modes (Solar Only, Hybrid) optimize energy use during peak/off-grid hours.
Robust Safety & Durability: Features pure sine wave output (THD ≤3%) to protect sensitive electronics, with multi-layer protections against overvoltage, overload, short circuits, and overheating (-20°C–60°C operation). The IP65-rated aluminum casing ensures resistance to dust, moisture, and corrosion.
Applications:
Residential Solar Systems: Powers homes during daylight and stores excess energy in 24V batteries for nighttime use.
Off-Grid Backup: Ideal for remote cabins or emergency power during grid outages, supporting up to 20kWh daily energy storage.
Hybrid Configurations: Integrates with grid-tied systems to reduce electricity bills through net metering.
Certified to CE, ISO9001, and UN38.3 standards, this inverter combines reliability with a 5-year warranty, making it a sustainable choice for eco-conscious households.
| Main Features: |
| ● Built-in 80A MPPT solar charge controller, max PV input 4000W |
| ● 40A Smart AC charger |
| ● High frequency transformer-less compact design |
| ● Pure sine wave AC 230V output with 50hz/60hz switch |
| ● Optional WiFi/ GPRS remote monitoring (extral cost) |
| ● Overload, short circuit, over discharge protection |
| ● Auto-start the generator ( Dry Contacts for delivering signal) |
| Inverter Mode: |
| ● Output: Pure Sine Wave |
| ● Peak Power : 6000VA |
| ● AC Output : 230VAC ,50HZ/60HZ |
| ● Input Voltage / Rated Battery : 24VDC (minimum start-up voltage:22V) |
| ● Bypass Breaker Current: 40A |
| ● Idle Power: 50W |
| ● Power Saver Mode Idle Consumption: 25W |
| MPPT Solar Charging Mode: |
| ● Maximum Input Power: 3500W |
| ● PV Charging Current : 0-80A |
| ● Max.PV Open Circuit Voltage: 500V |
| ● PV operation voltage range: 60-450VDC |
| ● Mppt Voltage Range: 60-450VDC |
| ● Recommended wire: 12 AWG |
| AC Charging Mode: |
| ● Rated AC input: 230V, 50HZ/60HZ |
| ● Input Voltage Range: 230VAC |
| ● Conversion Time: 10ms |
| ● Battery Type: Lead Acid and Lithium Battery |
| ● Maximum Charging Current: 60A |
| ● Charging Voltage Range:20-33VDC |
| ● Short-Circuit Protection: Breakers and fuses |
| ● Overcharge Protection: Yes. Automatically alerts and turns off charging after 1 min |
| Mechanical Specification: |
| ● Size: 15.0 x 11.0 x 4.0 inch |
| ● Net Weight: 16.8lbs |
| ● Noise: ≤60dB |
| ● Operating Temperature Range:5°F ~ 131°F/ -15°C ~ 55°C |
| ● Cooling Fan: Yes |
Achieves ≥93% conversion efficiency with pure sine wave output to ensure stable power for sensitive electronics.
Built-in 80A MPPT solar charge controller maximizes solar energy harvest (up to 4,000W PV input) and optimizes battery charging with 40A AC smart charging (compatible with lead-acid and lithium batteries).
Automatically prioritizes solar power usage, reducing grid/generator dependency and cutting energy costs by 30%.
Operates seamlessly in -15°C to 55°C environments, supported by a replaceable cooling fan and IP65-rated casing for dust/water resistance.
Features cold start functionality and auto-switching to grid/generator when solar/battery power is insufficient, ensuring uninterrupted supply.
Compact, lightweight design (16.8 lbs) simplifies installation in remote or mobile setups.
Optional WiFi/GPRS connectivity enables real-time remote monitoring of energy production, battery status, and system health via mobile apps.
Multi-layer safeguards include overload/short-circuit protection, overcharge alerts, and dry contacts for generator auto-start, minimizing downtime and fire risks.
Designed for 5–7+ years lifespan with replaceable components and compliance with CE, FCC, and ISO certifications.
