High-Capacity Power for 2–3 Ton Electric Forklifts: Balancing Strength and Efficiency

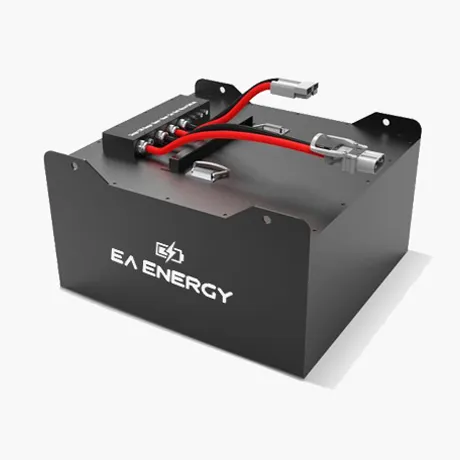

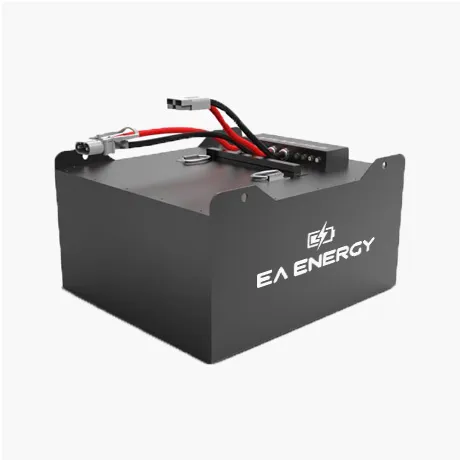

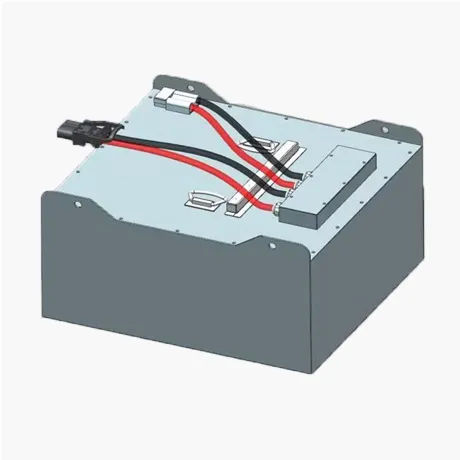

The EA 48V (51.2V) 460Ah LiFePO4 battery is engineered as a heavy-duty energy solution for 2–3 ton electric forklifts, delivering unmatched endurance for counterbalanced lifting, stacking, and transport across demanding industrial workflows. Its optimized weight distribution (190–266 kg) enables seamless integration as counterweight reinforcement, enhancing stability when handling palletized loads up to 3 tons in high-density warehouses, port terminals, and manufacturing plants. Designed for compatibility with global brands like Toyota, Hyster, and Crown, it replaces lead-acid systems by eliminating watering, acid leaks, and lengthy charging cycles—enabling opportunity charging during 30-minute breaks to sustain continuous multi-shift operations.
The battery’s high-capacity design ensures consistent power for full-day runtime (8–12 hours), even under peak loads like refrigerated logistics or heavy-container handling. Its ruggedized IP65–IP67 casing withstands dust, moisture, and mechanical stress, while advanced thermal resilience (–20°C to 60°C) guarantees reliability in extreme environments. By minimizing downtime and maximizing lift efficiency, this platform transforms 2–3 ton forklifts into productivity engines for economies of scale
| Model | EA51460F | Continuous Charge | 100A~200A |
| Nominal Voltage / Discharge Voltage Range | 48V (51.2V) | Maximum Continuous Charge | 200 A |
| Nominal Capacity | 460Ah | Continuous Discharge Current | 500A |
| Stored Energy | 23552Wh | Maximum Continuous Discharge Current | Peak 700A 30s |
| Weight | 215KG / 474 lbs (without counterweight) | Cycle Life | ≥3500 Cycles |
| Dimension(L×W×H) | 760 x 530 x 370 mm 29.9 x20.87 x 14.57 inch | Casing Material | Steel |
| Charge Temperature Range | 32°F~131°F (0°C ~ 55°C) | Application | Toyota, Hyster, Yale, Linde, Mitsubishi, and other electric forklifts, stackers |
| Discharge Temperature Range | -4°F~131°F ( -20°C ~ 55°C) | Safety Features | GPS, BMS, Over Charge/Discharge, Low/High Temp Cut-off, Over Current, Short Circuit |
With >3,500–6,000 cycles at 80% depth of discharge (DoD), this battery outperforms lead-acid alternatives (typically 1,000–1,500 cycles) by 3–6×, ensuring 8–10+ years of service with minimal capacity degradation, drastically reducing long-term replacement costs and waste.
Delivers 500A continuous discharge and 900–1,000A peak current (3s) for heavy lifting tasks, while supporting full recharges in 1.5–3 hours (vs. 8 hours for lead-acid). This enables "opportunity charging" during breaks, maximizing uptime in multi-shift operations.
Features an IP65–IP67-rated metal casing that withstands dust, water, vibrations, and impacts in harsh environments. Operates reliably across extreme temperatures (–20°C to 60°C), ideal for cold storage, humid docks, or outdoor yards.
An integrated Battery Management System (BMS) prevents overcharge, short circuits, and thermal risks while enabling real-time monitoring via RS485/CAN-bus/4G. Eliminates watering, equalization, and acid leaks, reducing operational costs by 50%
