Release Date: June 12, 2026 | Author: EA BATTERY Industrial Battery
Core Keywords: Linde L12R battery, Linde L16R battery, forklift lithium battery, Linde stacker lithium replacement, 24V LiFePO4 battery, EA BATTERY
Against the global trend of electrification and green logistics, lithium-ion batteries are rapidly replacing traditional lead-acid batteries in industrial vehicles. As classic workhorses for warehouse handling, Linde L12R (1200kg rated load) and L16R (1600kg rated load) pallet stackers are widely deployed in logistics warehouses, distribution centers, cold storage and port terminals worldwide. Most of these vehicles are originally equipped with lead-acid batteries, which suffer from slow charging, short service life, heavy weight and tedious daily maintenance.
To solve the pain points of traditional power systems and help enterprises improve operational efficiency and cut long-term costs, EA BATTERY has developed a dedicated LiFePO4 lithium battery model LFP4608S1P (25.6V 460Ah) tailored for Linde L12R and L16R stackers. This article comprehensively introduces the model matching parameters, installation standards, manufacturing craftsmanship, performance advantages, diversified global business models and full-range international supporting services, delivering a one-stop lithium conversion solution for global Linde stacker users, distributors and rental partners.
1.1 Overall Voltage & Electrical Matching
The Linde L12R/L16R stackers adopt a standard 24V electrical system. EA BATTERY LFP4608S1P lithium battery adopts an 8-series LiFePO4 cell design, with a nominal voltage of 25.6V and a full-charge voltage of 29.2V. The voltage range is fully compatible with the original vehicle controller and factory charger. No modification to the vehicle’s electrical circuit is required, realizing true direct replacement of lead-acid batteries.
1.2 Physical Dimensions & Structural Adaptation

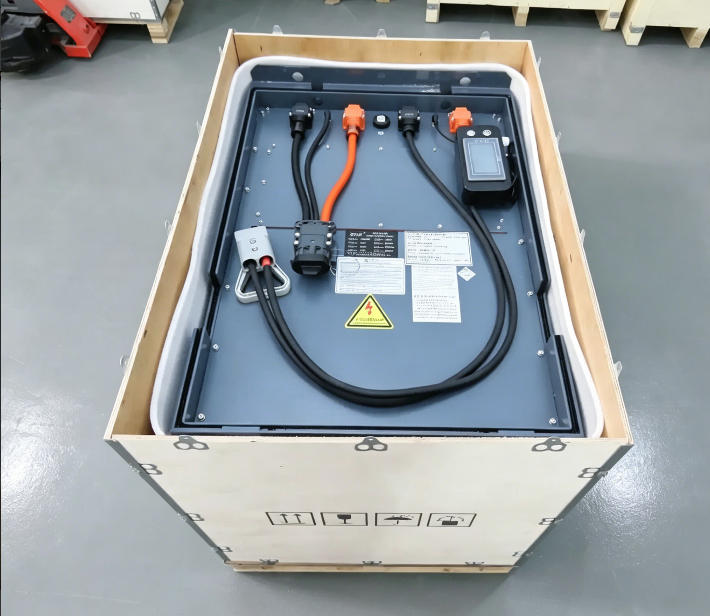

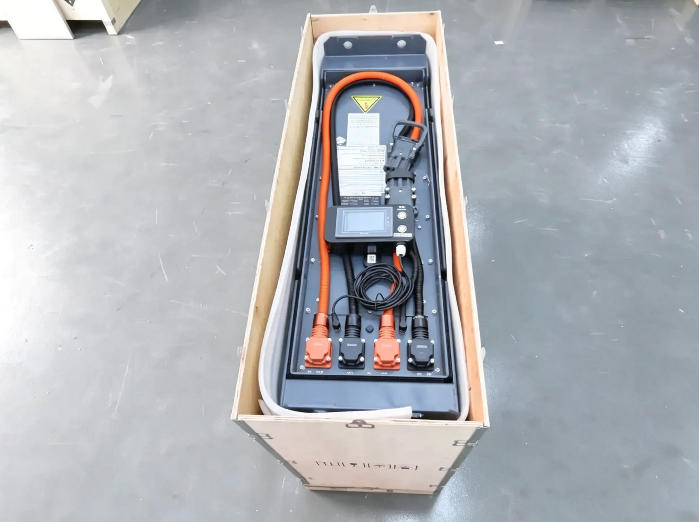

The overall size of the EA BATTERY lithium battery steel box is 827×270×627mm, which precisely fits the original battery compartment of Linde L12R and L16R.
Original lead-acid configurations for L12R: 24V 5PzSH600, 24V 6PZS660L (box size around 827×324×627mm);
Original lead-acid configurations for L16R: 24V 4PzS series (440Ah / 480Ah / 500Ah).
Thanks to the higher energy density of LiFePO4 cells, the lithium battery reduces the box width appropriately while maintaining the same length and height. Users do not need to cut the battery compartment or adjust the vehicle counterweight structure during replacement. The total weight of the LFP4608S1P lithium battery is about 180kg, while the equivalent lead-acid battery weighs over 315kg. The weight reduction of more than 100kg effectively lowers the vehicle’s power consumption and reduces wear on tires, wheel hubs and steering components.
1.3 Connector & Interface Standard
The battery is equipped with automotive-grade Anderson or Amphenol quick connectors consistent with Linde’s original standards. The plugging life exceeds 10,000 times, with extremely low contact resistance. It avoids heating and arcing during high-current discharge, ensuring stable operation under heavy-load working conditions. Users can directly plug and use the battery after placement.
1.4 Compatible Original Lead-Acid Models
EA BATTERY LFP4608S1P lithium battery can directly replace 24V 4PzS440, 24V 4PzS480, 24V 4PzS500. It is also compatible with Linde T20R electric pallet trucks, achieving multi-model universal application for global Linde fleets.
1.5 Charger Compatibility
Linde factory provides 90A, 160A, 225A three-speed chargers, which fully match the fast-charging performance of EA BATTERY. Users can continue to use original factory chargers or choose EA BATTERY self-developed high-frequency smart chargers. Different from lead-acid batteries requiring long cooling time, our lithium battery supports opportunity charging and can be put into use immediately after charging. Our chargers are customized to fit different regional power grid standards across the globe.
The stable performance of the lithium battery originates from strict cell selection and standardized PACK technology. EA BATTERY implements full-process quality management in accordance with automotive battery standards, fully complying with international industrial equipment regulations.
2.1 Top-Tier Automotive-Grade Cell Selection
All cells are sourced from CATL, EVE, CALB and LS. These LiFePO4 cells have passed overcharge, overdischarge, short circuit, extrusion and acupuncture tests, featuring stable performance, high temperature resistance and long cycle life for global working environments.

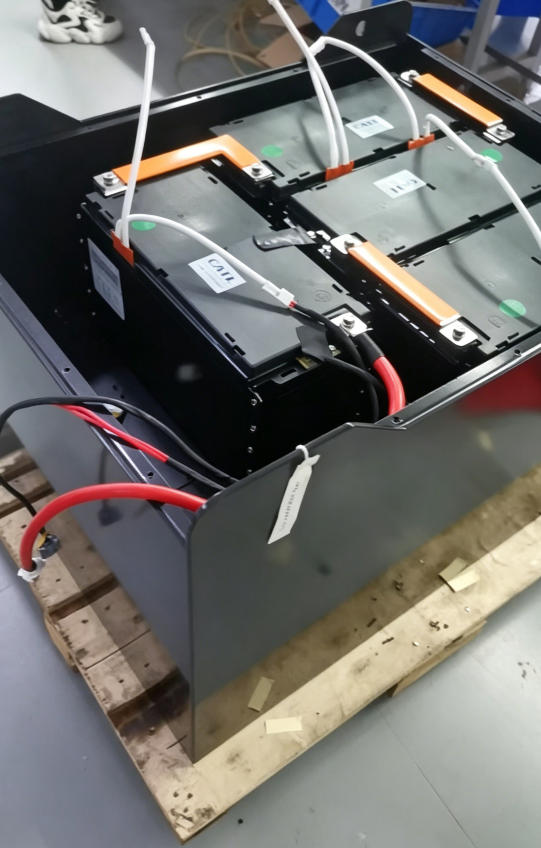

2.2 Standard PACK Production Process
Cell Sorting & Matching: All incoming cells are tested for capacity, internal resistance and self-discharge rate. Only cells with highly consistent parameters are grouped.
Laser Welding & Busbar Connection: Cell lugs are connected to T2 pure copper busbars via laser welding. The busbar is nickel-plated or tin-plated for anti-oxidation.
Module Fixation & Insulation Protection: Modules are installed in high-strength steel boxes with flame-retardant and heat insulation materials. The product reaches IP54 protection grade against dust and splashing water.
5th-Generation Smart BMS Integration: The self-developed BMS monitors cell voltage, current and temperature in real time. It supports overcharge, overdischarge, overcurrent and over-temperature protection, as well as automatic cell balancing. The standard CAN bus connects with Linde original systems, and multi-language settings are available for global users.
72-hour Aging Test & Factory Inspection: All finished products undergo simulated charge-discharge aging tests to meet international quality standards.
Comparison Dimension | Traditional Lead-Acid Battery | EA BATTERY LiFePO4 Lithium Battery |
Charging Efficiency | Full charge takes 8-10 hours plus 8 hours cooling; no opportunity charging | 1-2 hours full charge; support 30-minute quick charging, ready for immediate use |
Cycle Life | 1,000-1,500 cycles (80% DOD), 2-3 years service life | 4,000-5,000 cycles (80% DOD), 7-9 years service life |
Energy Density | 30-50Wh/kg, heavy weight | 120-160Wh/kg, lightweight, lower power consumption |
Daily Maintenance | Regular water addition and terminal cleaning required | Fully sealed, zero maintenance, no acid mist or hydrogen |
Low-Temperature Adaptation | Severe capacity loss and difficult charging | Optional built-in heating film for normal operation in cold storage |
Inherent Safety | Risk of deflagration due to hydrogen emission | High thermal stability, no thermal runaway under extreme conditions |
Full-Lifecycle Cost | Low upfront cost, high long-term expenditure | Slightly higher initial cost, 35%-40% lower total cost in 5 years |
For global logistics enterprises running multi-shift operations, EA BATTERY effectively cuts downtime and labor costs, especially for cold storage and enclosed warehouses.
EA BATTERY focuses on global market expansion. Our solutions are highly friendly for international distributors and rental companies, providing low-risk, high-return cooperation models.
4.1 Global Rental Solutions for Overseas Partners
We provide three flexible rental plans and deliver complete operation systems, cloud monitoring platforms and professional technical guidance to global rental partners:
Long-term Rental (3-5 years): Suitable for rental firms with stable local clients. EA BATTERY takes charge of core after-sales support.
Short-term Rental (1-12 months): Ideal for seasonal demands and temporary warehouse projects with flexible terms.
Rent-to-Own: End users pay monthly rent and obtain full ownership after contract expiration, helping partners attract more SME clients.
Our product lineup covers L12R, L16R, T20R stackers, E-series counterbalance forklifts and R-series reach trucks. We also share mature rental operation experience with overseas partners.
4.2 Global Direct Sales & Remote Technical Support
We maintain sufficient inventory for bulk orders and fast global delivery. The warranty period is 5-6 years (adjustable per local conditions). We provide full English manuals, installation guides and remote debugging services, plus brand training and marketing materials for regional agents.
4.3 Global Export Solutions

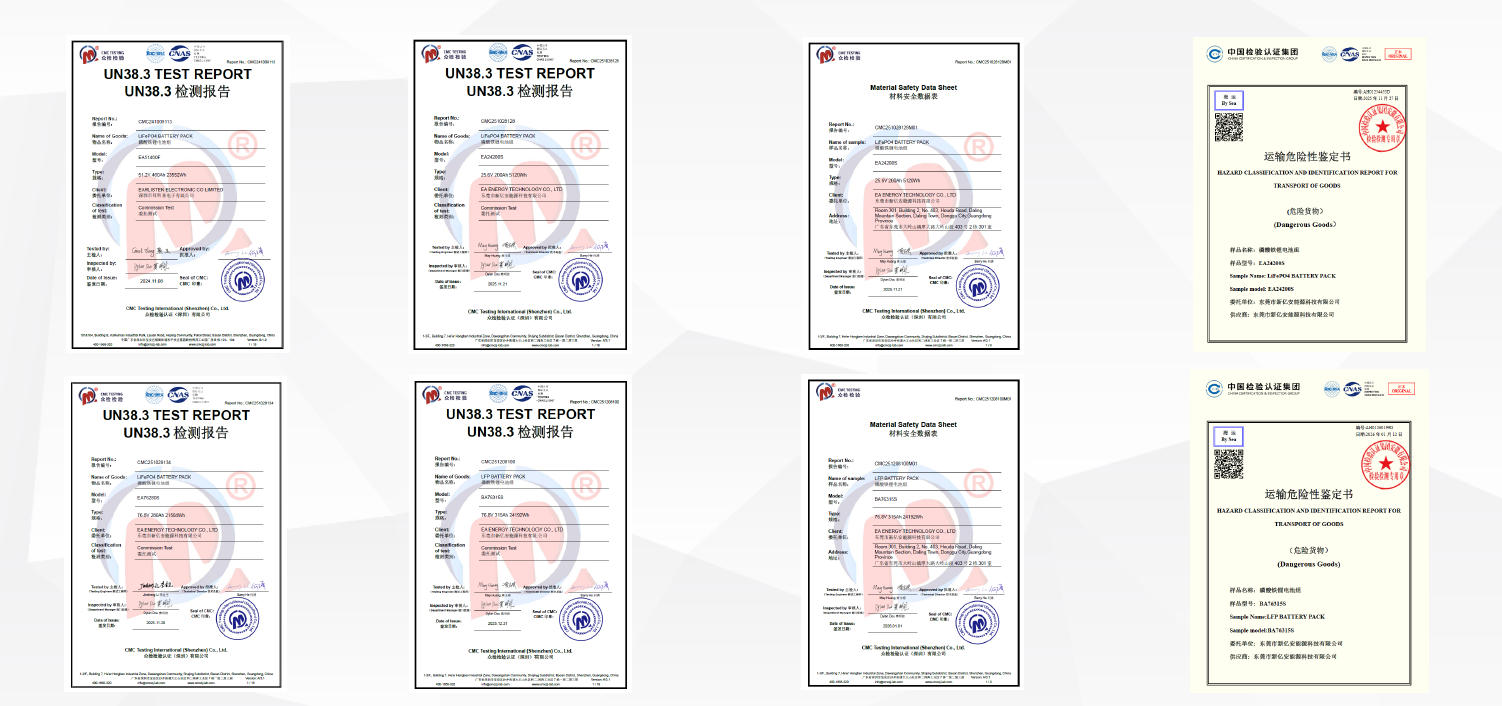

EA BATTERY has passed UN38.3 transportation certification, equipped with complete MSDS, dangerous goods declaration and customs documents. It complies with IMDG and IATA rules, supporting EXW, FOB, CIF, DDP and all mainstream trade terms for Southeast Asia, Middle East, Europe, North America and Oceania. We offer customized labels, packaging and certification to meet local regulations.
Battery rental is widely adopted in global logistics. The two battery types differ greatly in cost, maintenance and application:
Rent & Replacement Cost: Lead-acid batteries have low monthly rent but need replacement after 2-3 years. EA BATTERY features long lifespan with no mid-term replacement, reducing comprehensive costs.
Maintenance Responsibility: Lead-acid batteries require regular manual maintenance. EA BATTERY is 100% maintenance-free. We and our authorized partners handle BMS upgrade, remote diagnosis and on-site repair.
Applicable Scenarios: Lead-acid batteries fit single-shift work. EA BATTERY is the best choice for multi-shift, cold storage and enclosed warehouse operations worldwide.
Founded in 2012, EA BATTERY is a professional forklift lithium battery manufacturer with ISO certification. All products comply with GB, DIN, JIS, BS, IEC international standards.
6.1 Full Coverage of Linde Vehicle Models
We develop dedicated lithium solutions for full Linde product lines:
Pallet stackers: L12R, L16R, T20R (24V series)
Counterbalance forklifts: E20-E80 (up to 1240Ah large capacity)
Reach trucks: R-series, K-series (custom low-profile design)
Voltage options include 24V, 48V, 72V, 80V. We also support customized OEM & ODM services for global brands.
6.2 Global Cooperation & Service Network
We have built stable partnerships across Southeast Asia, the Middle East, Europe, North America and Oceania. We provide product training, after-sales support and logistics tracking for all regional partners to help expand local market share.
6.3 Technical Development Direction

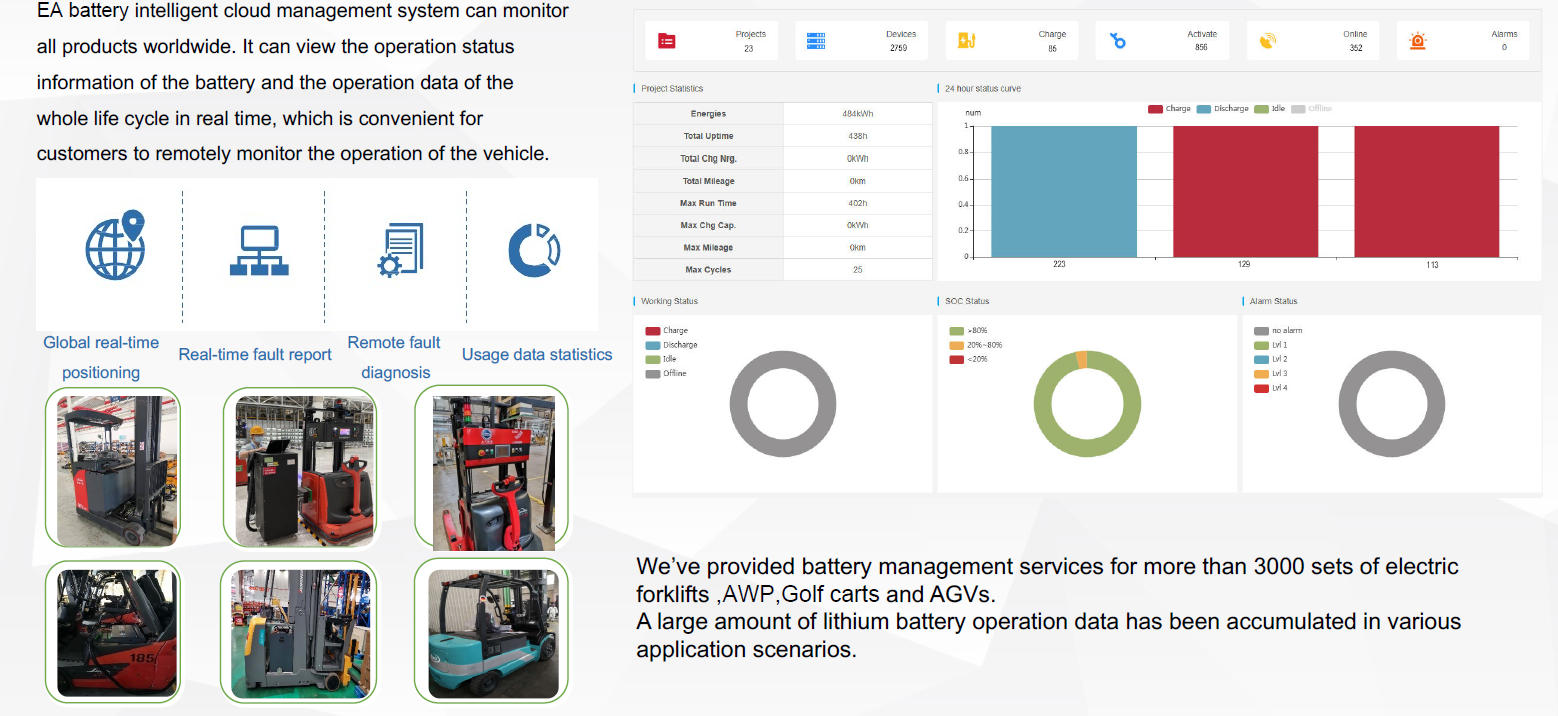

We continuously upgrade BMS and remote cloud monitoring systems. The 5th-generation BMS supports data recording, fault diagnosis and lifespan prediction, realizing digital fleet management for global clients.
As a dedicated replacement battery for Linde L12R and L16R stackers, EA BATTERY LFP4608S1P 25.6V 460Ah LiFePO4 battery achieves perfect plug-and-play installation without vehicle modification. With automotive-grade cells, reliable PACK technology, outstanding performance and comprehensive global services, EA BATTERY is a trustworthy partner for worldwide Linde users, distributors and rental enterprises.
In the era of global logistics electrification, EA BATTERY helps international businesses reduce costs and improve operational efficiency.
