One Standard Pack, Every 48V Forklift: How the 51.2V 560Ah LiFePO4 Battery Ends the Lead-Acid Era

If you operate counterbalance forklifts, you already know the math that keeps fleet managers up at night. A 48V lead-acid battery that takes 8 hours to charge and another 8 hours to cool. A dedicated battery room eating up valuable floor space. Weekly watering schedules, acid spills, corroded connectors, and the constant shuffle of swapping half-ton batteries between shifts just to keep machines moving.

And that's before you factor in the real killer: every forklift brand seems to want its own battery. Your Toyota 8FB series uses one configuration, your Linde E20 uses another, and the Hyster or Jungheinrich units in the corner each demand their own proprietary packs. The result? A parts department full of incompatible batteries, a maintenance team stretched thin, and capital locked up in spares that only fit one machine.

What if one standard lithium battery pack could replace all of that? That's precisely what the EA ENERGY EA51560F was built to do. This 51.2V 560Ah LiFePO4 battery pack is a direct drop-in power solution for virtually every 48V electric forklift on the market — and thanks to its standard-pack-plus-counterweight design, a single battery SKU can serve your entire mixed fleet.

The Hidden Cost of Staying with Lead-Acid

Most operations dramatically underestimate what lead-acid batteries actually cost beyond the sticker price. The true expense hides in daily operations:

• Lost shifts: A lead-acid battery needs 8 hours to charge plus cooling time. Multi-shift operations are forced to buy two or three batteries per truck — and pay for the labor to swap them.

• Maintenance labor: Watering, equalization charging, acid neutralization, and terminal cleaning consume hours of technician time every single week.

• Battery room overhead: Ventilated charging rooms, spill containment, hoists, and safety equipment are all infrastructure costs that lithium makes obsolete.

• Premature failure: Partial charging, deep discharges, and high ambient temperatures slash real-world lead-acid lifespan to 1,200–1,500 cycles — sometimes less.

• Inventory bloat: Mixed fleets mean multiple battery SKUs, multiple charger types, and shelves of brand-specific spare parts.

For rental companies and multi-site logistics operators, the pain is sharper still: when a customer calls with a 48V forklift from a brand you don't normally stock, you either scramble for a compatible battery or lose the business.

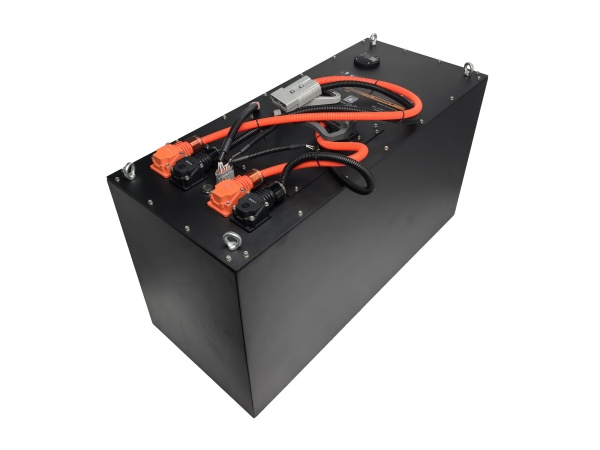

Introducing the EA51560F: One 51.2V 560Ah Pack for the Entire 48V Class

The EA51560F is engineered around a 16S lithium iron phosphate architecture — 16 series-connected cells delivering a nominal 51.2V, the direct lithium equivalent of every 48V lead-acid system on the market. With 560Ah of capacity, it stores roughly 28.7 kWh of energy, making it the right power class for 1.5 to 3.5 ton counterbalance forklifts and other heavy-duty 48V material handling equipment.

Core specifications at a glance:

Compatible with the Industry's Biggest 48V Names

The EA51560F was designed as the universal answer for 48V-class equipment. Whether your fleet is single-brand or a mixed bag from a dozen manufacturers, this pack slots in:

• Toyota electric counterbalance forklifts (8FB/8FBN series and similar)

• Linde E-series electric forklifts

• Jungheinrich EFG series and 48V warehouse equipment

• Still RX series electric trucks

• Hyster and Yale 48V counterbalance forklifts

• Crown, Mitsubishi, Clark, UniCarriers, Heli, Hangcha, EP, and other 48V platforms

If the machine runs on a 48V system — lead-acid or lithium — there is a very strong chance the EA51560F will fit. No custom engineering projects. No ten-week lead times. One standard pack, one inventory line, total fleet coverage.

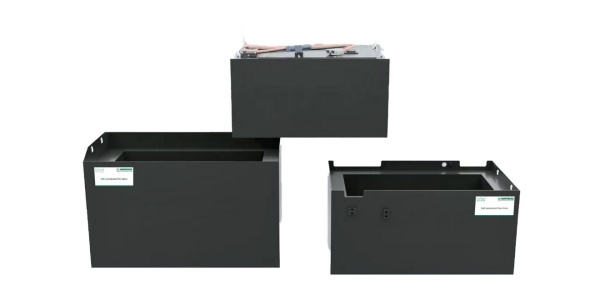

Standard Battery Pack + Counterweight: The Design That Changes Everything

Here's the engineering insight that makes universal compatibility possible — and it's the feature rental fleet managers get genuinely excited about.

Counterbalance forklifts depend on battery weight for stability during lifting. Lead-acid batteries are heavy, so they double as the counterweight. Lithium packs are far lighter, which means a naive lithium retrofit can leave a forklift dangerously unbalanced.

EA ENERGY's solution is elegantly simple: a standard battery pack plus a model-matched counterweight enclosure.

• The EA51560F battery itself is a single, universal, standardized unit — same cells, same BMS, same dimensions, every time.

• The counterweight enclosure is the only component tailored to each forklift model, adding exactly the ballast required to meet the OEM's balance specification.

• Moving power between brands means sliding the same battery into a different enclosure — minutes of work, not a new purchase order.

Why does this matter so much? Because it decouples your battery inventory from your fleet composition. One battery SKU covers every 48V machine you own or rent out. Scaling up for a seasonal peak means adding standard packs — not betting on which brands your future customers will bring. For rental companies, this is transformative: fewer batteries in stock, more customers served, and zero capital stranded in brand-specific packs that fit exactly one machine.

Engineering Deep Dive: What Sets the EA51560F Apart

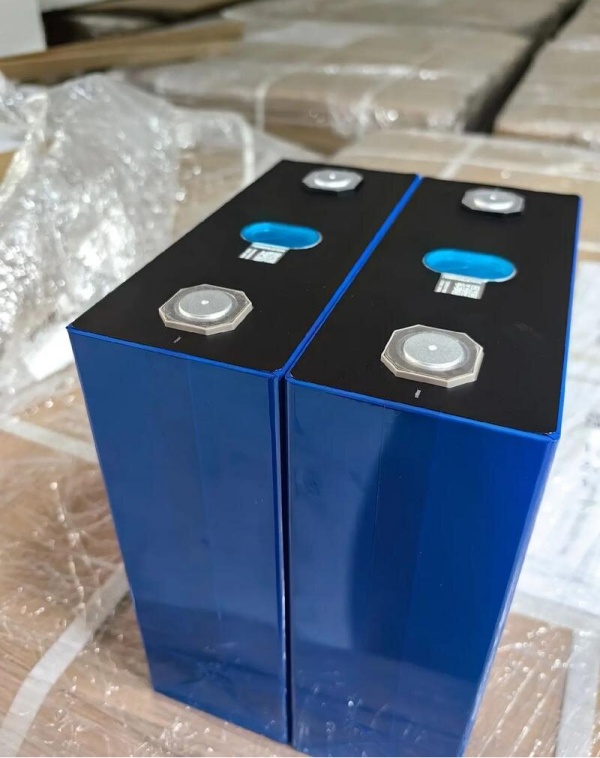

Automotive-Grade Cells, Matched for Consistency

Every EA51560F is built with A-grade automotive prismatic cells from tier-1 suppliers including CATL, EVE Energy, CALB, and Lishen. But premium cells are only the starting point — each cell undergoes secondary sorting for voltage, capacity, and internal resistance before being grouped into the pack. This matching process ensures uniform performance across all 16 series strings and eliminates the "weakest link" degradation that silently shortens the life of cheaper packs.

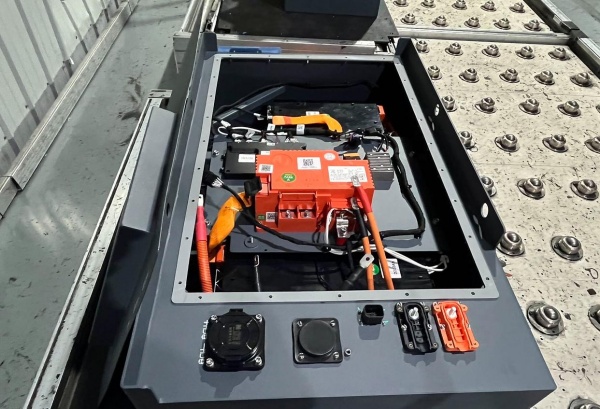

Self-Developed BMS with Multi-Level Protection

Rather than relying on generic off-the-shelf boards, EA ENERGY develops its own battery management system purpose-built for material handling duty cycles:

• Hardware-level protection: Overcharge, over-discharge, overcurrent, and short-circuit protection on every string.

• Thermal monitoring: Distributed NTC sensors detect abnormal heat buildup and trigger power reduction or shutdown before damage occurs.

• Smart SOC/SOH estimation: Active balancing keeps string voltages within millivolts of each other, maximizing usable capacity and cycle life.

The BMS communicates with the forklift controller and charger via CAN bus, delivering real-time state-of-charge data, health diagnostics, and fault codes straight to the operator display. No guesswork, no surprises.

95% Depth of Discharge: More Work from Every Charge

Here's the number that matters: 95%. That's the depth of discharge the EA51560F sustains without harming the cells. Lead-acid batteries, by contrast, must be managed at 50–60% DoD to avoid sulfation and premature death.

In practical terms, a 48V 775Ah lead-acid pack with ~37.2 kWh nominal capacity delivers only about 20 kWh of usable energy. The EA51560F, storing ~28.7 kWh, delivers roughly 27.2 kWh of usable power — over 30% more work per charge from a pack that's dramatically lighter and maintenance-free.

Opportunity Charging: Refuel During Breaks, Not Overnight

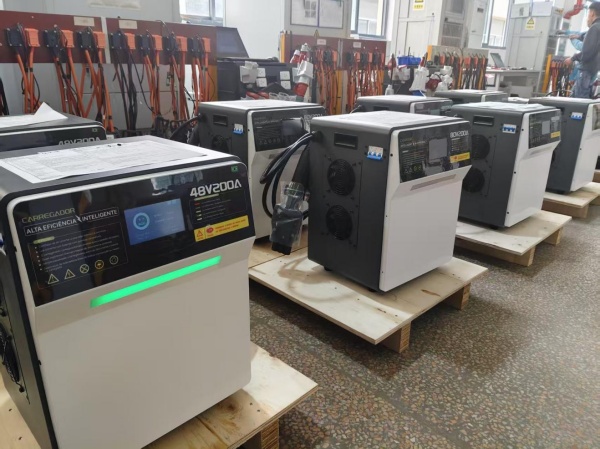

Paired with a matched 58.4V charger (58.4V corresponds exactly to the 3.65V per-cell charge limit across 16 cells), the EA51560F supports fast, frequent opportunity charging. Plug in during lunch breaks and shift changes, and a single battery keeps a truck running through two or even three consecutive shifts — the operating pattern that used to require two lead-acid batteries and a swapping hoist.

The charger and BMS communicate continuously over CAN, creating a closed loop where the BMS tells the charger exactly how much current the pack can safely accept at any moment. If any cell approaches a voltage or temperature limit, charging current backs off automatically. Full charge typically takes 3 to 4 hours depending on charger rating — versus 8 to 10 hours plus equalization time for lead-acid.

Cold Storage Performance That Actually Delivers

Warehouse work doesn't stop at the freezer door, and neither should your battery. Standard lithium packs struggle below freezing, with voltage sag and surprise shutdowns becoming the norm. The EA51560F is available with purpose-built cold storage accessories and thermal management that maintain reliable output in temperatures down to -30°C. Frozen food distribution centers, refrigerated logistics hubs, and unheated winter facilities all get steady, predictable power — no capacity fade, no unexpected shutdowns.

The Total Cost of Ownership Advantage

Lithium carries a higher upfront price than lead-acid — there's no way around it. But total cost of ownership over the battery's service life tells a very different story:

Factor in the eliminated battery room, the recovered labor hours, the second and third lead-acid packs you no longer need per truck, and the standard-pack inventory simplification, and the EA51560F typically pays for itself within 18 to 24 months — then keeps saving money for years afterward.

Built for Rental Fleets and Export Markets

The EA51560F was designed from day one for international rental operations and export markets. If your rental pool serves customers across Europe, North America, Southeast Asia, or the Middle East, one battery SKU covering the entire 48V class is a massive simplification of inventory strategy. No more guessing which brands to stock. No more turning away business because the customer's forklift doesn't match your shelves.

EA ENERGY also supports flexible commercial models, including monthly and annual battery rental programs with BMS cloud monitoring, regular capacity verification, and guaranteed performance thresholds — ideal for rental companies that want to offer battery-as-a-service without building the infrastructure themselves.

Certified, Compliant, and Ready for Global Deployment

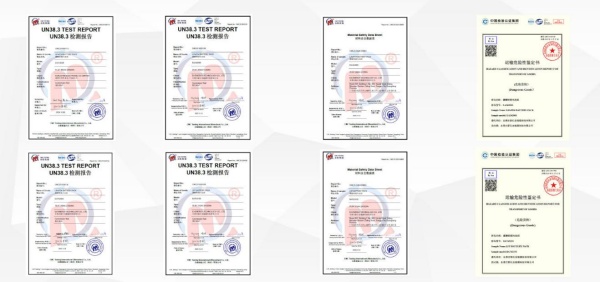

Shipping lithium batteries internationally demands rigorous compliance — and cutting corners leads to seized cargo and delayed projects. Every EA51560F ships with a complete documentation package:

• UN38.3 test report (UN transportation safety standard for lithium batteries)

• MSDS (Material Safety Data Sheet)

• DGM transport hazard assessment reports (sea, road, and air)

• Dangerous Goods Classification Report

• Export Dangerous Goods Packaging Use Inspection Certificate

• CE certification (EU market)

• UL certification (North American market)

Whether your destination is Hamburg, Houston, or Ho Chi Minh City, the EA51560F arrives with every document in order, clearing customs without delays or surprises.

The Bottom Line

The material handling industry has accepted the lead-acid status quo for too long: proprietary batteries, battery rooms, watering schedules, mid-shift swaps, and inventory scattered across incompatible SKUs. That model serves battery manufacturers, not fleet operators.

The EA ENERGY EA51560F represents a different vision: one standard 51.2V 560Ah LiFePO4 pack that powers virtually any 48V forklift, with a model-matched counterweight enclosure handling brand-specific balance requirements. More usable energy, three times the cycle life, zero maintenance, and a single inventory line for your entire fleet.

Whether you run a single distribution center, manage a mixed fleet across multiple sites, or rent equipment to customers with machines from half a dozen brands, this battery makes your operation simpler, more flexible, and more profitable.

Ready to see how the EA51560F can transform your fleet — or your rental inventory? Contact our team today for a customized assessment and quote.

Frequently Asked Questions

Q: Which forklift brands is the EA51560F compatible with?

A: The EA51560F is designed for virtually all 48V-class electric forklifts, including Toyota, Linde, Jungheinrich, Still, Hyster, Yale, Crown, Mitsubishi, Clark, Heli, Hangcha, and EP machines. Its standard-pack-plus-counterweight design uses model-matched counterweight enclosures to meet each forklift's OEM balance specification.

Q: How does the counterweight system work?

A: The battery pack itself is a single standardized unit. For each forklift model, a dedicated counterweight enclosure adds the exact ballast required for safe lifting balance. The same battery can move between different forklift brands simply by switching enclosures — one battery SKU serves your entire 48V fleet.

Q: How long does the EA51560F take to charge?

A: With a matched 58.4V charger, a full charge typically takes 3 to 4 hours. The pack fully supports opportunity charging during breaks and shift changes, allowing a single battery to power a truck through multiple shifts — replacing the two-battery lead-acid setup.

Q: What is the expected service life?

A: The EA51560F is rated for 4,000+ charge cycles under typical operating conditions (0.5C charge/discharge at 25°C) — roughly three times the real-world lifespan of a comparable lead-acid battery. One lithium pack routinely outlasts two or three lead-acid replacements.

Q: Can it operate in cold storage facilities?

A: Yes. With the cold storage configuration, the EA51560F maintains reliable performance in temperatures down to -30°C, making it suitable for frozen food warehouses, refrigerated logistics centers, and cold-climate outdoor operations.

Q: Is the EA51560F certified for international shipping?

A: Absolutely. Every unit ships with a complete compliance package including the UN38.3 test report, MSDS, DGM transport hazard assessments, dangerous goods classification, CE certification for the EU, and UL certification for North America.
