Publish Date: June 20, 2026
EA BATTERY EVE cell lithium battery replacement solution for Linde R14 & R14S reach trucks, direct drop-in upgrade to original 4PzS500/4PzS560 lead-acid batteries. Full specs, PACK tech, global rental & export service for overseas warehouse, port, cold chain logistics operators.
Keywords: Linde R14 battery, Linde R14S lithium battery, reach truck lithium battery, EA BATTERY, forklift LiFePO4 battery, 48V to 51.2V forklift upgrade, industrial warehouse battery
As global warehouse logistics rapidly shifts from lead-acid to lithium power, reach trucks have extremely strict power matching standards due to narrow aisle operation, high mast lifting height and extended fork reach. The Linde R14 and R14S reach trucks are mainstream workhorses in worldwide storage facilities. Matching a suitable power pack is far more than simply matching voltage and capacity; it requires systematic engineering considerations including vehicle gravity balance, long-duration thermal management and adaptive charging algorithms.
This blog comprehensively introduces the tailor-made LFP40416S2P lithium battery developed by EA BATTERY exclusively for Linde R14/R14S reach trucks. We cover physical dimension matching, complete electrical parameters, professional PACK manufacturing processes, standardized installation steps, total cost of ownership comparison and lead-acid replacement feasibility. This practical guide serves global warehouse managers, equipment supervisors and international forklift service partners across all regions.
Linde R14 and R14S reach trucks are widely deployed globally in high-bay racking warehouses, cold chain distribution hubs, auto component cross-docking yards, bonded port warehouses and electronic clean manufacturing plants. These sites demand maximum utilization of limited battery compartment space while sustaining heavy continuous discharge, with balanced weight distribution as a core design priority.

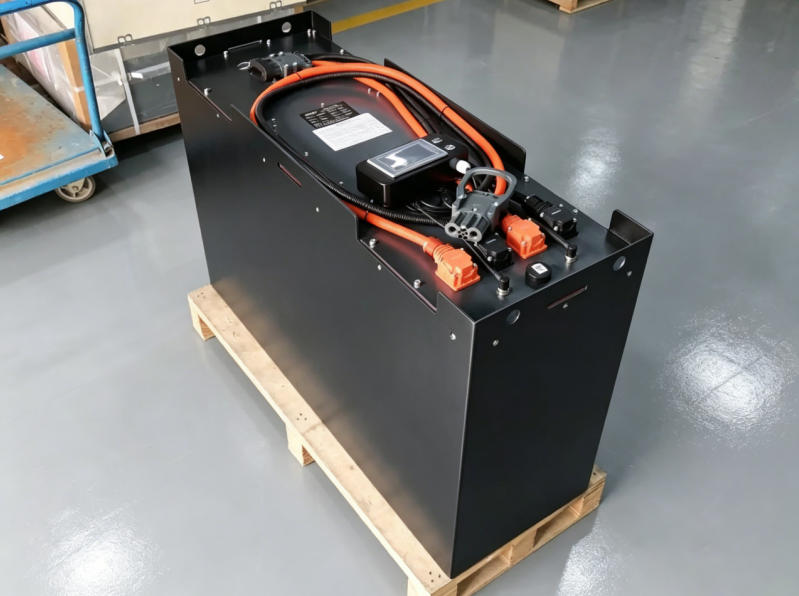

EA BATTERY LFP40416S2P lithium pack dimension: 1220mm(L) × 355mm(W) × 784mm(H). The size perfectly fits the factory battery compartment frame of Linde R14/R14S, with no cutting, welding or structural modification required on the truck body.
Comparison with Original Lead-Acid Batteries
Original factory lead-acid models for this vehicle: 4PzS500 / 4PzS560, nominal 48V, 500–560Ah. Their overall dimensions are similar yet heavy, most units weigh over 900kg, with flooded maintenance versions nearly reaching 1000kg.
EA BATTERY LFP40416S2P total weight is controlled above 860kg. Although the weight gap is only dozens of kilograms, it effectively reduces torque load on the mast root and significantly improves vertical stability during high-level pallet retrieval, a critical advantage for multi-story rack operations in global logistics facilities.
EA BATTERY LFP40416S2P features nominal 51.2V, rated 404Ah, total energy around 20.7kWh. The 3.2V voltage lift delivers multiple operational benefits:
- Lower operating current under identical power output, cutting heat generation in wiring and connectors;
- Ultra-flat LiFePO4 discharge curve with minimal voltage fluctuation between 20%–90% SOC. The vehicle ECU operates within a stable voltage window, delivering linear torque for travel and hydraulic pumps, greatly enhancing fine-tuning precision during delicate fork handling.
The 404Ah capacity is engineered around real global working conditions: single-shift high-bay picking, shuttle rack storage and conveyor cross-transit average power consumption sits at 15–18kWh per hour. With built-in safety buffer, the battery supports full single-shift operation without mid-shift recharging.
For double-shift or peak seasonal operations, opportunity charging during lunch or shift handover is fully supported. LiFePO4 chemistry tolerates frequent partial charge cycles without memory effect or sulfation risks that plague lead-acid batteries.
3.1 Grade-A Automotive Cell Sourcing
EA BATTERY LFP40416S2P adopts large-format aluminum shell LiFePO4 cells with 2 parallel + 16 series assembly structure. We exclusively source automotive-grade A cells from CATL, EVE, CALB and LS, with full batch and production line traceability for every single cell.
Automotive-grade cells surpass standard industrial cells in dust-free production control, capacity sorting precision, cycle verification standards and safety test coverage. Taking EVE lithium cells as an example, the production workshop maintains Class 10 cleanroom standards, electrode coating tolerance controlled within ±1%, and millivolt-level self-discharge screening. All incoming cells undergo secondary sorting by capacity, internal resistance and voltage drop; cells deviating more than 2 standard deviations are eliminated to guarantee over 98% current balance between parallel modules.
3.2 Modular Internal Structure
Frame assembly: Aluminum end plates + steel binding belts secure cell stacks; thermally conductive silicone pads fill gaps between cells, with PET blue insulation film for primary isolation.
Connection design: Laser-welded flexible copper busbars for positive/negative output, cross-sectional area designed with 1.5x peak current safety margin.
Custom CAN-BUS BMS: Independently developed by EA BATTERY for Linde R14/R14S, perfectly handshake with the factory T4 vehicle controller. Original dashboard directly displays real SOC, estimated remaining runtime, peak cell temperature and fault codes without external auxiliary monitors. Twisted shielded voltage sampling cables deliver ±5mV testing accuracy; 2A active balancing circulates charge across all cells throughout charge & discharge cycles to slow overall capacity decay.
3.3 IP65 Protective Enclosure & Full Factory Testing

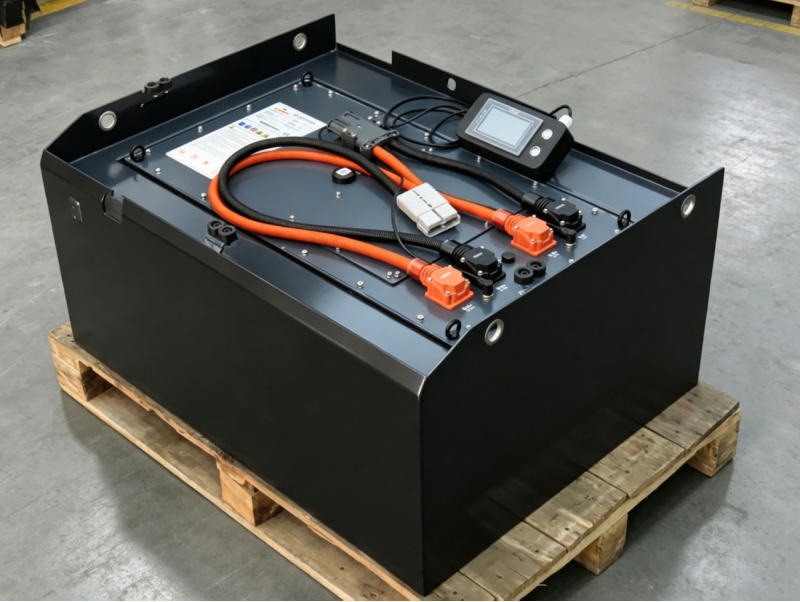

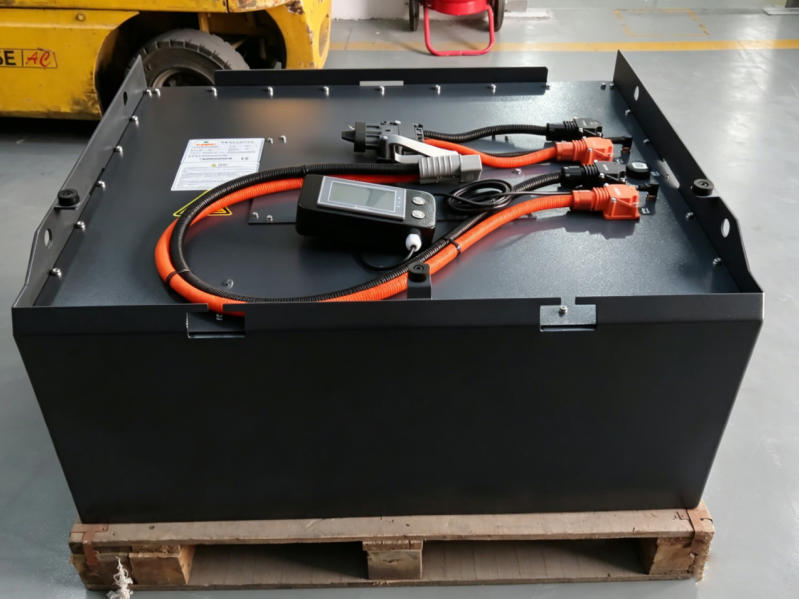

The battery cabinet is stamped and welded cold-rolled steel with acid & alkali resistant polyurea coating, reaching IP65 dust/waterproof rating. Internal through-flow air ducts separate electrical components from cooling airflow via axial fans.
Power connectors: Anderson high-current plugs matching original Linde interfaces; signal ports adopt Amphenol waterproof connectors with over 10,000 plug/unplug service life.
Every finished EA BATTERY pack completes a full test suite before shipment: vibration testing compliant with ISO 12405, compression resistance, overcharge/over-discharge protection validation and salt spray aging, replicating bumpy port roads and frequent mast lifting mechanical stress.
Disconnect the truck main power supply before removing old lead-acid packs. Clean all debris inside the compartment; neutralize sulfuric corrosion on the floor with alkaline solution and fully dry.
EA BATTERY LFP40416S2P is pre-installed with locating holes matching Linde R14/R14 chassis positioning pins. Use four-lift-point dedicated slings to hoist the battery horizontally into the compartment.
Secure front & rear pressure plates first, then connect communication harnesses followed by power cables (reverse sequence for disassembly).
Keep the vehicle stationary and run a full 6-hour charge to complete BMS initial capacity calibration.
After first full charge, discharge down to ~15% SOC then fully recharge to enable the coulomb counter full-cycle self-calibration for accurate remaining power display.
Traditional lead-acid batteries create heavy total ownership costs for international logistics companies: most overseas warehouses run double shifts and require two lead-acid packs for rotation. Expenses include battery procurement, daily watering labor, charging area corrosion renovation and compliant waste battery disposal, plus production downtime during battery swap-outs.
EA BATTERY launches global flexible lithium rental solutions designed for overseas distributors, rental firms and end warehouses: Clients pay monthly usage fees while EA BATTERY retains battery ownership. All packages include cloud BMS remote monitoring, worldwide emergency technical support and full equipment insurance. After the rental term ends, customers may renew the contract, fully purchase the battery or upgrade to higher-capacity models.
This model is highly suitable for regions with strict environmental regulations and expensive labor such as Europe, North America, Australia, Hong Kong & Macau. It eliminates cross-border hazardous waste disposal paperwork and cuts daily maintenance manpower costs for global warehouse operators.
EA BATTERY supports customized BMS parameter tuning to match diverse working environments across all global territories:
- Cold storage facilities: Adjust charge cut-off voltage to prevent lithium plating under low temperatures;
- Tropical port terminals with high heat & humidity: Strengthen insulation monitoring and anti-condensation control;
- Clean electronic & food manufacturing plants: Zero acid mist emission design compliant with international hygiene standards.
We maintain a complete global certification portfolio including UL2580, CE, UN38.3 and full MSDS documents, clearing customs clearance barriers for shipments to Europe, North America, Southeast Asia, Middle East, Oceania and more than 40 global economies. Our in-house testing laboratory issues UN38.3 reports without third-party outsourcing to shorten delivery lead times. All chargers can be pre-configured to match local grid voltage & plug standards for every target country.
For regional overseas partners: EA BATTERY establishes local authorized technical cooperators worldwide to deliver remote BMS diagnosis and fast spare parts customs clearance, shortening global after-sales response cycles. Our vertical integrated production system delivers full OEM & ODM development for all Linde truck ranges (reach, counterbalance, pallet stackers), not just aftermarket replacement packs.
Lead-acid batteries still have merits in low upfront cost and mature recycling channels for certain extreme cold sites. However, lithium upgrades bring overwhelming benefits for international high-throughput warehouses:
- Lighter weight reduces mast stress and tire wear, extending high-bay continuous operation hours;
- Zero daily maintenance eliminates dedicated watering staff;
- 1-hour opportunity charging eliminates extra storage space for spare lead-acid batteries;
- No acid vapor pollution, fully compliant with food, pharmaceutical and semiconductor factory hygiene standards.
EA BATTERY offers impartial upgrade consulting for global clients based on actual shift schedules, grid capacity and budget limits, rather than universal one-size-fits-all recommendations.
Charger compatibility: New chargers must support 51.2V LiFePO4 charge curves. Original lead-acid chargers require hardware upgrade or full replacement if voltage constant stage parameters do not match.
Thermal management: Battery compartment ventilation can be simplified, yet forced air cooling or off-peak charging is recommended for facilities with sustained ambient temperature above 40°C in tropical zones.
Load calibration: The 860kg battery weight is engineered to match original lead-acid mass balance; no mast tilt sensor recalibration is needed for standard high-bay workflows.
Communication matching: EA BATTERY CAN-BUS BMS fully integrates with Linde T4 controllers; SOC and low-power alerts display identically to factory fuel gauges with zero learning curve for operators.
Product Basic Info | |
Model | LFP40416S2P |
Rated Voltage | 51.2V |
Rated Capacity | 404Ah |
Total Weight | 870kg |
Overall Size | 1220×355×784mm |
Protection Class | IP65 |
Cell Supplier: EVE / CATL / CALB / LS Automotive Grade A LiFePO4
Read the full EA BATTERY lithium battery user manual before installation and operation.
Never reverse positive/negative terminals or short-circuit poles with metal conductors to avoid safety hazards.
Only use EA BATTERY matched lithium chargers; power off the truck before charging. Pause charging first before unplugging cables – do not disconnect live charging plugs.
Avoid long-term direct sunlight exposure; do not store or wash the battery under high temperature/humidity environments.
All disassembly and maintenance must be completed by EA BATTERY certified global service technicians.
Daily usage: Maintain SOC above 25%; charge promptly once below 15%. Long-term storage (over 30 days): Preserve SOC at 40%+ and complete one full charge-discharge cycle monthly.
Selecting power packs for Linde R14/R14S reach trucks requires systematic engineering evaluation instead of simple parameter matching. EA BATTERY LFP40416S2P LiFePO4 lithium battery achieves full compatibility in dimension, voltage, weight distribution, CAN communication and cross-climate adaptability.
EA BATTERY provides a full industrial chain solution covering automotive-grade cell sourcing, precise PACK integration, customized BMS development, global rental programs and compliant export logistics. For global warehouse managers, port operators and international forklift service providers, analyzing full-lifecycle cost alongside daily shift patterns and local power infrastructure enables the most cost-effective lithium conversion decision.
